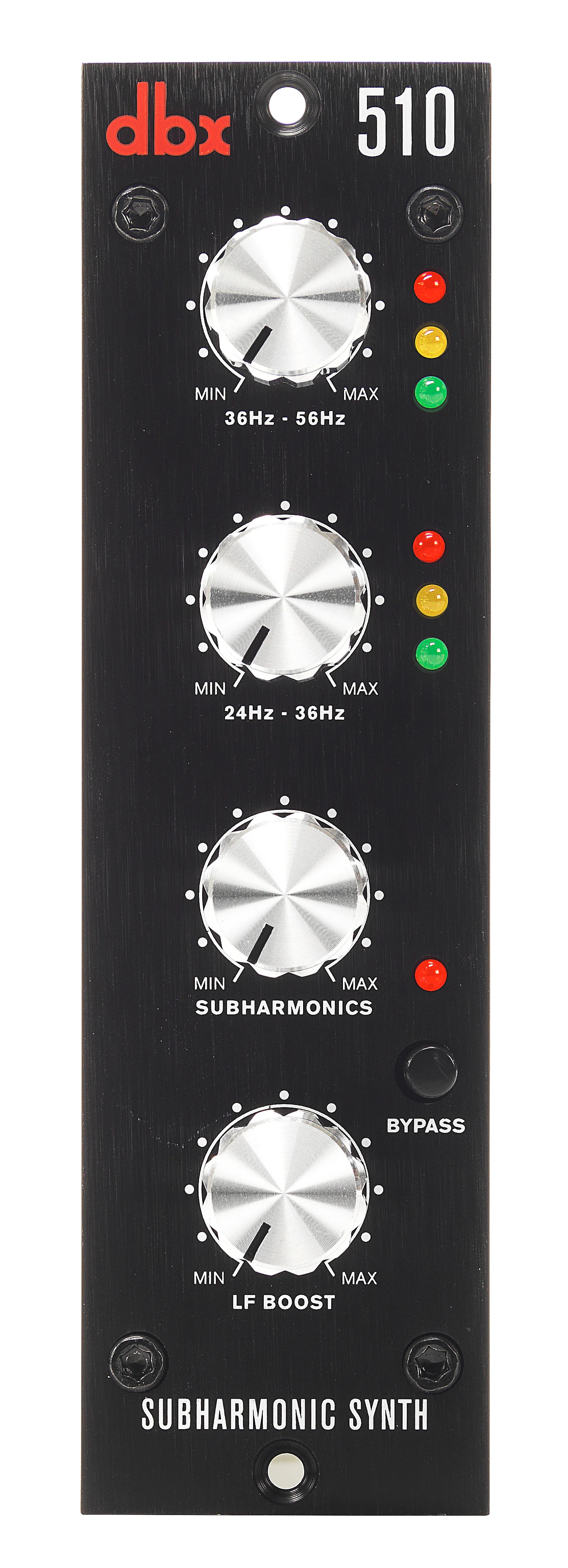

Subharmonic Synthesizer - 500 Series

510
Larger Images

For decades, dbx’s patented Subharmonic Synthesis has rattled foundations enhancing the bass in a variety of professional applications including nightclub and DJ mixing, theatre and film sound, music recording, live music performance and broadcasting. dbx’s Subharmonic Synthesis process actually produces a new, Waveform Modeled bass note, exactly an octave below the bass in the original audio.

The dbx 510 answers the call of audio professionals everywhere delivering Subharmonic Synthesis in the convenient design of a 500 Series module. The 510’s two separate bands of subharmonic synthesis provide the best combination of smoothness and control, while the independent Low Frequency Boost circuit is designed to get the most out of high-performance, low frequency speaker systems. Unlike other attempts at bass synthesis, the dbx process produces musical low frequencies that don’t interfere with mid and high-band information, even when the maximum synthesis and boost are applied. The result is a low-end punch that people really feel!

Put some boom in your room with the dbx 510!

Recommended for: Portable, Tour, Studio.

Features

  • Based on dbx's fabled Subharmonic Synthesizer processors
  • Simple, intuitive interface
  • Synthesized frequency level indicator LEDs
  • Individual controls for two ranges of subharmonic frequencies
  • Subharmonics level control
  • Synthesis Bypass switch

Downloads

  Version Language Size Uploaded
file type icon 510 Safety & Compliance Document-English
en updated: Mar 2024
  en  323 KB Mar 2024
file type icon 510 Owner's Manual-English
en updated: Mar 2024
  en  383 KB Mar 2024
Quick Start Guides
file type icon 500 Series Quick Start Guide
updated: Apr 2016
    253 KB Apr 2016

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance 20 k Ω balanced, 10 k Ω unbalanced
Max Input Level +22 dBu
CMRR >40 dB; typically >55 dB at 1 kHz
Output Type Electronically balanced/unbalanced, RF filtered
Output Impedance Balanced 30Ω , unbalanced 15Ω
Max Output Level +22 dBu
Frequency Response 20Hz – 20kHz, + 0/-0.5dB; 14 Hz – 120 kHz, +0/-3 dB
Noise <-99 dBu, Unweighted (22 Hz – 22 kHz)
THD+Noise <0.003% typical from 22 Hz – 22 kHz at 0 dBu
Dynamic Range >120 dB
Synthesis Frequency Range 26-56 Hz (from 54-110 Hz input signal)
Power Requirements +/- 16V DC
Power Current Draw 85 mA per power rail
Power Draw 2.7 watts
Rack System Compatibility 500 Series Compatible Power-frame
Rack Space 1 Slot
Dimensions (H x W x D) 5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm)
Weight 1.3 lbs (0.59 kg)
Shipping Weight 1.7 lbs (0.77 kg)
