Parametric EQ - 500 Series

530
Larger Images

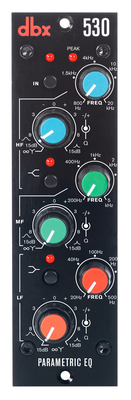

The dbx 530 Parametric EQ offers a unique degree of equalization flexibility in the popular 500 Series format. Based upon the classic dbx 905, the dbx 530 is an uncompromising equalizer offering true, fully parametric operation of all three filter bands! dbx has a much-heralded history with modular processors dating back to our 900 Series, and the dbx 530 continues that tradition.

The dbx 530's overlapping bands each offer control of frequency bandwidth (Q) and up to 15dB of reciprocal cut or boost to provide exact, complimentary filter action for the most demanding of equalization needs. For problem situations requiring the removal of spurious signals, each of the bands can be independently switched into “infinite notch” mode without affecting the operation of others. In situations where a shelving equalizer will produce better results than a peaking one, the 530’s high and low bands can be independently switched from peaking to shelving operation. You can also make instant affected/bypassed comparisons using the 530's “On” switch.

Load up your 500 Series rack with dbx 530 Parametric EQs­­ and cut your way through mixes like an audio surgeon!

Recommended for: Portable, Tour, Studio.

Features

  • Based on the classic dbx 905
  • 3-band parametric EQ
  • Selectable bell or shelf type filters on low and high frequency bands
  • Adjustable Q on each band

Downloads

  Version Language Size Uploaded
file type icon 530 Safety & Compliance Document-English
en updated: Mar 2024
  en  323 KB Mar 2024
file type icon 530 Owner's Manual-English
en updated: Mar 2024
  en  553 KB Mar 2024
Quick Start Guides
file type icon 500 Series Quick Start Guide
updated: Apr 2016
    253 KB Apr 2016

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance 40k Ohms balanced, 20k Ohms unbalanced
Max Input Level +22dBu
CMRR >40dB; typically >55dB at 1kHz
Output Type Electronically balanced/unbalanced, RF filtered
Output Impedance Balanced 30 Ohms, unbalanced 15 Ohms
Max Output Level +22dBu
Frequency Response 20Hz - 20kHz, +0/-1dB; <10Hz - 30kHz, +0/-3dB
Noise -90dBu, Unweighted (22Hz - 22kHz)
THD+Noise <0.006% typical, 20Hz - 20kHz, 0dBu out
Dynamic Range 112dB
EQ Filter Type Each band symmetrical peak/dip, each band switchable to Infinite Notch mode, high and low bands switchable to symmetrical shelving
EQ Center Frequencies Low band = 20 Hz – 500 Hz, mid band = 200 Hz – 5 kHz, high band = 800 Hz – 20 kHz
EQ Range ±15 dB, peak or shelved
EQ Infinite Notch Attenuation Typically > 40dB
Power Requirements +/- 16V DC
Power Current Draw 85 mA per power rail
Power Draw 2.72 watts
Rack System Compatibility 500 Series Compatible Power-frame
Rack Space 1 Slot
Dimensions (H x W x D) 5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm)
Weight 1.3 lbs (0.59 kg)
Shipping Weight 1.7 lbs (0.77kg)
