CT-3

Advanced Cable Tester

CT-3
Larger Images

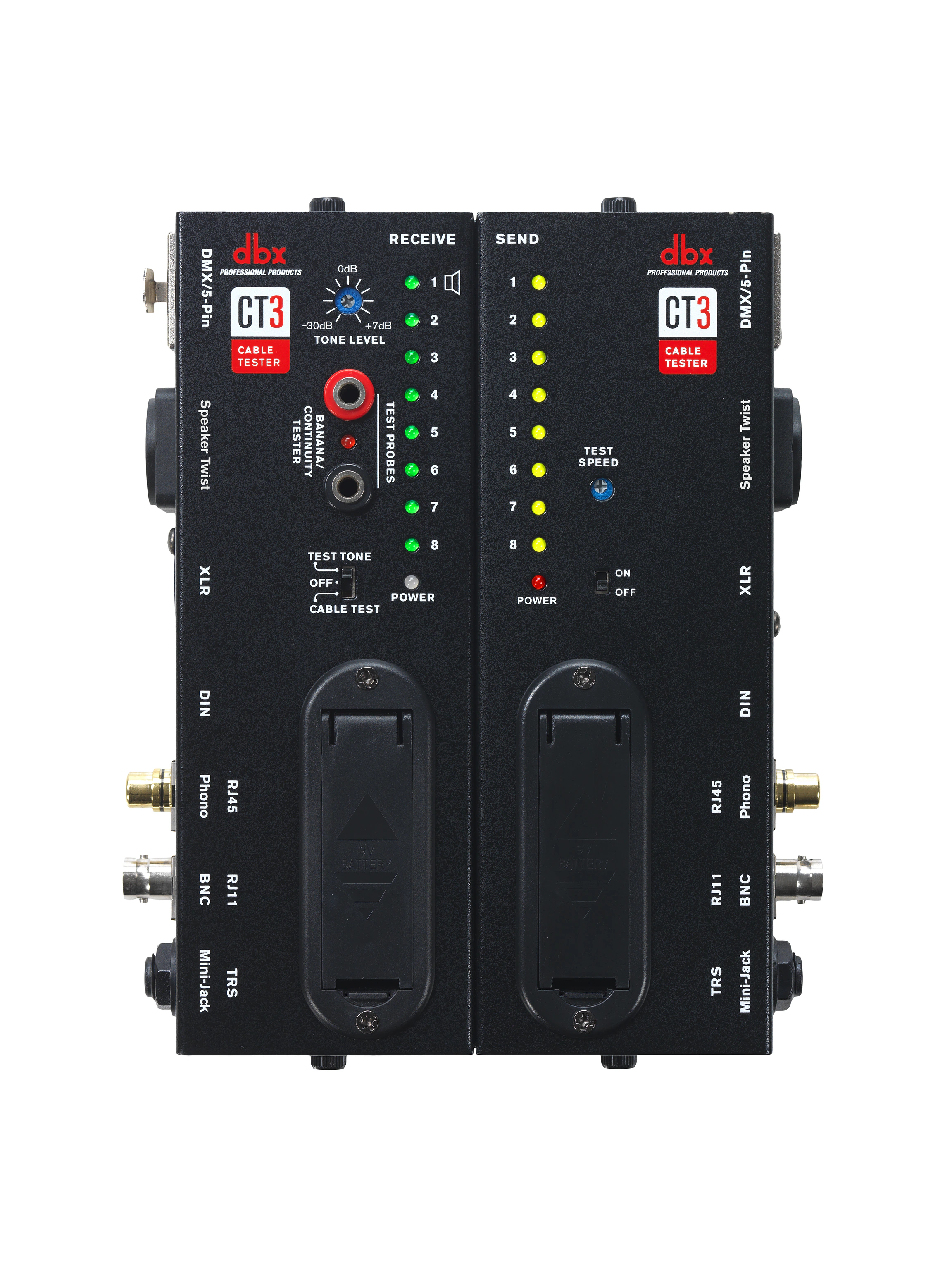

The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana. It can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested.

Recommended for: Studio, Tour, Portable.

Features

  • Tests up to 8-pin cables
  • 2 piece chassis for testing installed cables
  • Test Tone Generator
  • Allows connection between different format connectors with ease
  • ‘Banana’ connector continuity tester with beeper and LED indicator
  • Super-rugged construction for durability and longer life
  • (2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
  • (2) BNC connectors for testing of 2 pin->to pin connections
  • (2) RCA Phono connectors for testing of 2 pin->to pin connections
  • (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
  • (2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
  • (2) Speaker Twist connectors for testing of 4 pin->to pin connections
  • (2) Banana connectors for testing of 1 pin->to pin connections
  • (2) 1/4” (6.3mm) TRS/TS connectors for testing of 3 pin->to pin connections
  • (2) RJ45 connectors for testing of 8P8C modular connections
  • (2) 1/8” (3.5mm) TRS/TS connectors for testing of 3 pin->to pin connections

Downloads

  Version Language Size Uploaded
file type icon CT-3 Safety & Compliance Document-English
en updated: Mar 2024
  en  325 KB Mar 2024
file type icon CT-3 Owner's Manual-English
en updated: Mar 2024
  en  346 KB Mar 2024
file type icon CT-3 Quickstart Guide-English
en updated: Mar 2024
  en  191 KB Mar 2024
file type icon CT-3 Quick Reference Guide-English
en updated: Mar 2024
  en  373 KB Mar 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Power Requirements (2) 9V batteries, one per side (Batteries not included)
Dimensions 3.5” (8.9cm) (W) x 5.5” (14cm) (L) x 1.5” (3.7cm) (H)
