goRack (discontinued)

Performance Processor

goRack
Larger Images

The easiest way to optimize your PA

To give your best performance, you've gotta sound great. dbx goRack is the EASIEST way to optimize your PA and ensure amazing sound, every time, everywhere you go. And you know you'll sound great because goRack features the same software as our professional DriveRack PA2.

Professional Audio Wherever the Performance Takes You

Historically, the convenience of portability in a PA System has meant a compromise in sound quality and fidelity. To answer that call, dbx is proud to introduce the all-new goRack™ Portable Performance Processor. The goRack is an easy-to-use portable speaker processor. Based on our industry-leading DriveRack® Series, the goRack sits next to a set of powered speakers and provides powerful signal processing including Anti-Feedback (based on our AFS™ Advanced Feedback Suppression algorithm), Compression, Sub-Harmonic Synth and EQ. Each processing function is easily enabled or disabled via the dedicated function buttons, and settings are adjusted via goRack’s large data wheel.

goRack Virtual Tour

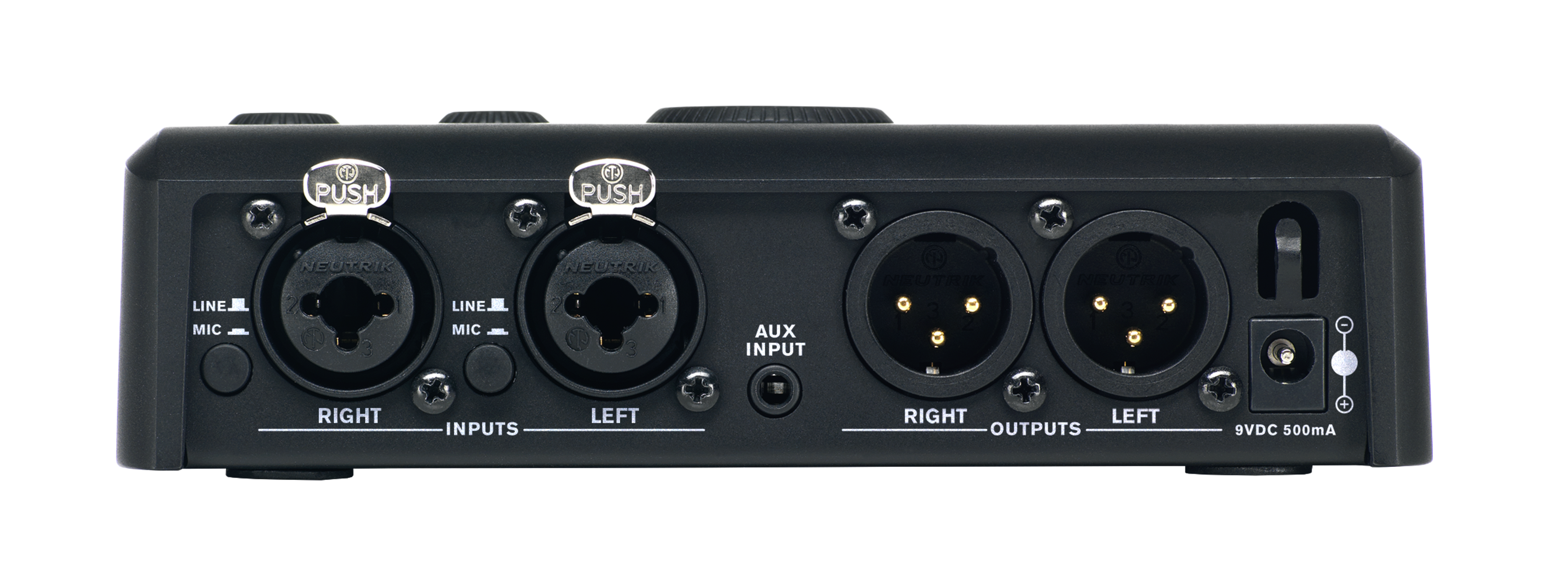

goRack’s rear panel features combination 1/4”/XLR inputs that can be connected to either mixer outputs or microphones. When using a mic, the goRack's Mic/Line switch selects the proper input sensitivity and gain range while dual gain controls on the top provide independent level adjustment. goRack’s 1/8” Aux input allows for direct connection of mobile music players while XLR outputs interface with powered speakers.

The goRack represents the best of dbx’s DriveRack processing in its purest, most simplified form all housed in a sleek, compact form factor that fits in your hand, or back pocket. The goRack is perfect for applications from a mixer, or with its dual XLR inputs and Aux input, it can be used as a standalone performance processor/mixer for the solo artist.

goRack DSP

Anti-Feedback Processing

Make annoying and potentially painful audio feedback a thing of the past with the goRack's simple-to-use, Anti-Feedback processing. Based on dbx's industry-leading AFS (Advanced Feedback Suppression) algorithm, the goRack makes eliminating system feedback a snap. Simply press the goRack's Anti-Feedback function button and use the Data Wheel to adjust the settings. The goRack listens for, anticipates and removes feedback automatically without altering your sound.

Compressor

Control dynamics and fine-tune your system with the straightforward Compressor feature based on the legendary dbx 163 Compressor. Minimize peaks and level out variances in your audio source material with goRack’s intuitive Compressor feature.

Sub-Synth

goRack's Sub Synth feature is the perfect tool for adding extra bass to your system. For decades, dbx's patented Subharmonic Synthesis has been the secret weapon used by mobile DJ’s and film and sound professionals to produce low frequency impact unavailable from any other device—unique because the dbx process actually produces a new, Waveform Modeled™ bass note, exactly an octave below the bass in the original audio.

EQ

Add richness and clarity to your audio with the goRack’s EQ feature. Experiment with one of goRack’s custom EQ settings to instantly improve bass, midrange and treble response. The goRack’s EQ can also be used to adjust a sound system to account for the acoustical response of a room or an outdoor venue.

The dbx goRack is ideally suited for live sound applications where portability is essential without compromising sound quality.

Available Processing

  • Anti-Feedback (AFS Advanced Feedback Suppression)
  • Compressor (based on the dbx 163)
  • Subharmonic Synthesis
  • EQ (Custom Presets)

Recommended for: Installed, Portable, Tour.

Videos





Features

  • Compact Form Factor
  • Anti-Feedback Processing based on the dbx AFS™ (Advanced Feedback Suppression) algorithm
  • dbx Compression (based on the dbx 163)
  • Subharmonic Synthesis
  • EQ (16 Musical Genre-Based 31-Band Graphic EQ Settings)
  • Dual dbx Microphone Preamp/Line Inputs
  • Selectable Mic/Line Input Settings
  • Stereo Inputs and Outputs
  • Combination Mic/Line Input Jacks and XLR Outputs
  • 1/8" Stereo Aux Input for Mobile Music Players/Devices
  • Independent Left and Right Channel Volume Controls

Downloads

  Version Language Size Uploaded
file type icon goRack Safety & Compliance Document-English
en updated: Mar 2024
  en  326 KB Mar 2024
file type icon goRack Owner's Manual-English
en updated: Mar 2024
  en  3.3 MB Mar 2024
file type icon goRack Quickstart Guide-English
en updated: Mar 2024
  en  454 KB Mar 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Mic/Line Inputs 2, independently switchable between mic or line level
Mic/Line Input Connectors Female ¼” - XLR combination
Mic/Line Input Type Electronically balanced, RF filtered
Mic/Line Input Impedance Switch set to MIC: 2 kΩ balanced, Switch set to LINE: 22 kΩ balanced
Mic/Line Input Max. Gain Switch set to MIC: 48 dB, Switch set to LINE: 5 dB
Mic/Line Input Max. Input Level Switch set to MIC: 0 dBu, Switch set to LINE: +20 dBu
Mic/Line Input CMRR > 45 dB
Aux Input 1
Aux Input Connector Female stereo 1/8” (3.5 mm) TRS mini
Aux Input Type Unbalanced, RF filtered
Aux Input Impedance 20 kΩ
Aux Input Max. Input Level +20 dBu
Outputs 2 line outputs
Output Connectors Male XLR
Output Type Impedance balanced, RF filtered
Output Impedance 40 Ω
Maximum Output Level +14 dBu
Mic/Line A/D and D/A Converters 24-bit
Mic/Line A/D and D/A Dynamic Range 115 dB A-weighted
Aux Input D/A Converter 24-bit
Aux Input D/A Dynamic Range 106 dB A-weighted
Internal Processing Wordlength 32-bit floating point
Sample Rate 48 kHz
Dynamic Range 103.5 dB A-weighted, 102.5 dB unweighted
THD+Noise 0.04% typical at 0 dBu in/out, 1 kHz
Frequency Response 20 Hz – 20 kHz, +0 /- 0.5 dB
Interchannel Crosstalk < -80 dB, -84 dB typical
Latency Input to output: 3.4 ms
Power Supply PS0913DC-04 (9 VDC)
Operating Voltage 100-240 VAC, 50/60 Hz
Power Consumption 4.5 Watts (500 mA)
Unit Weight 1.2 lbs. (0.54 kg)
Shipping Weight 2.04 lbs. (0.93 kg)
Dimensions 6.1” (L) x 4.1” (W) x 1.69” (H), 154.9 mm (L) x 104.1 mm (W) x 42.9 mm (H)
