ZC-FIRE

ZonePRO Fire Safety Interface

$69.00
Buy It Now
Larger Images

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

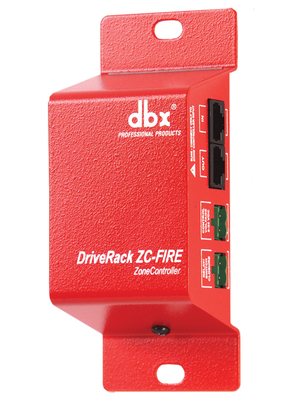

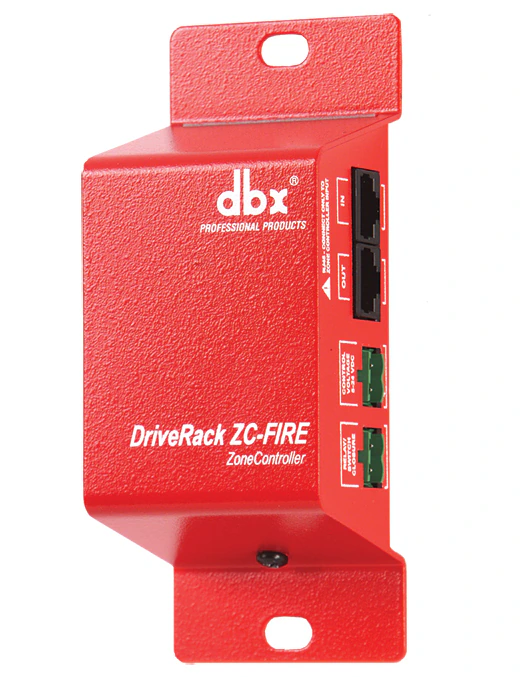

The ZC-FIRE is a dedicated fire safety interface for the ZonePRO products that allows selection of either system mute or scene selection upon being triggered by either a relay or control voltage from the fire safety system.

A ZC-4 can also be used as an interface to an alarm system. The ZC-4 Fire Alarm Integration Guide can be found in the Manuals/Documentation section of the ZC-4 product page.

All information is subject to change without notice.



Recommended for: Installed.

More Details

Architects’ and Engineers’ Specifications:

The remote device shall provide either output muting or programmable scene selection for the dbx® ZonePRO™ devices. Connection to the fire safety system shall be either through a relay or directly to the control voltage output. The remote device shall have DIP switches allowing identificationwith connection to the processing device via CAT 5 cable on RJ-45 connectors. The device shall be a dbx ZC-FIRE remote controller.

Downloads

  Version Language Size Uploaded
ZC-FIRE CAD drawing front
en updated: Aug 28, 2012
  en  161 KB Aug 28, 2012
ZC-FIRE Cut Sheet-English
en updated: Dec 19, 2011
  en  832 KB Dec 19, 2011
ZC controller connectivity and association.pdf
en updated: Dec 19, 2011
  en  274 KB Dec 19, 2011
Tech Notes
ZC Connectivity and Association
updated: Aug 27, 2015
    274 KB Aug 27, 2015
Training Resources
ZonePRO Training (All)
updated: Aug 27, 2015
    367 MB Aug 27, 2015
Owner's Manuals
ZC Series Manual-English
updated: Nov 04, 2016
    1.39 MB Nov 04, 2016

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Connectors (2) RJ-45
Series Wiring Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065
