ZC6

Wall-Mounted Zone Controller

ZC6
Larger Images

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

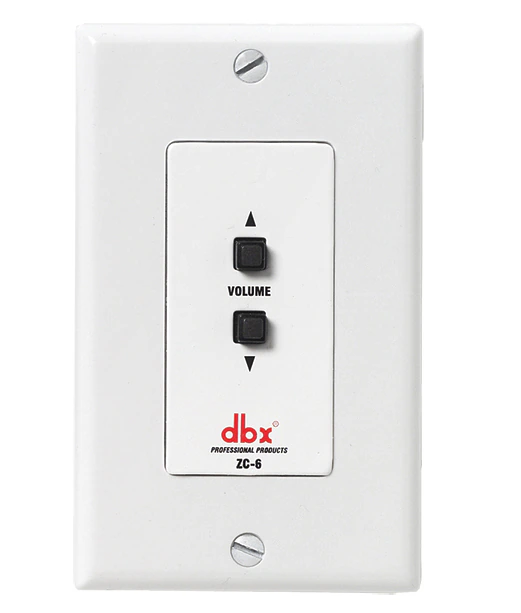

The ZC-6 is a programmable volume control for ZonePRO devices.

All information is subject to change without notice.



Recommended for: Installed.

More Details

Architects’ and Engineers’ Specifications:

The remote device shall provide computer programmable push-button up/down volume control for the dbx® ZonePRO™ devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors. The device shall be a dbx ZC-6 remote controller.

Downloads

  Version Language Size Uploaded
file type icon ZC6 CAD drawing front
en updated: Nov 12
  en  242 KB Nov 12
file type icon ZC6 Cut Sheet-English
en updated: Nov 13
  en  832 KB Nov 13
file type icon ZC controller connectivity and association.pdf
en updated: Nov 13
  en  274 KB Nov 13
Tech Notes
file type icon ZC Connectivity and Association
updated: Oct 22
    274 KB Oct 22
Training Resources
file type icon ZonePRO Training (All)
updated: Oct 22
    367 MB Oct 22
Owner's Manuals
file type icon ZC Series Manual-English
updated: Oct 22
    1.39 MB Oct 22

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Connectors (2) RJ-45
Series Wiring Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065
