CT-2

Cable Tester

CT-2
Larger Images

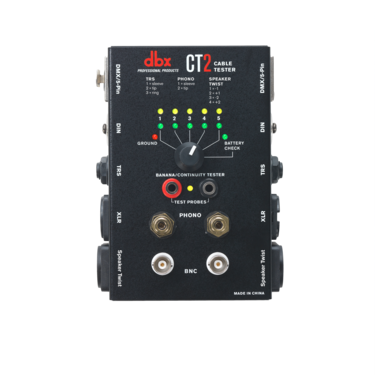

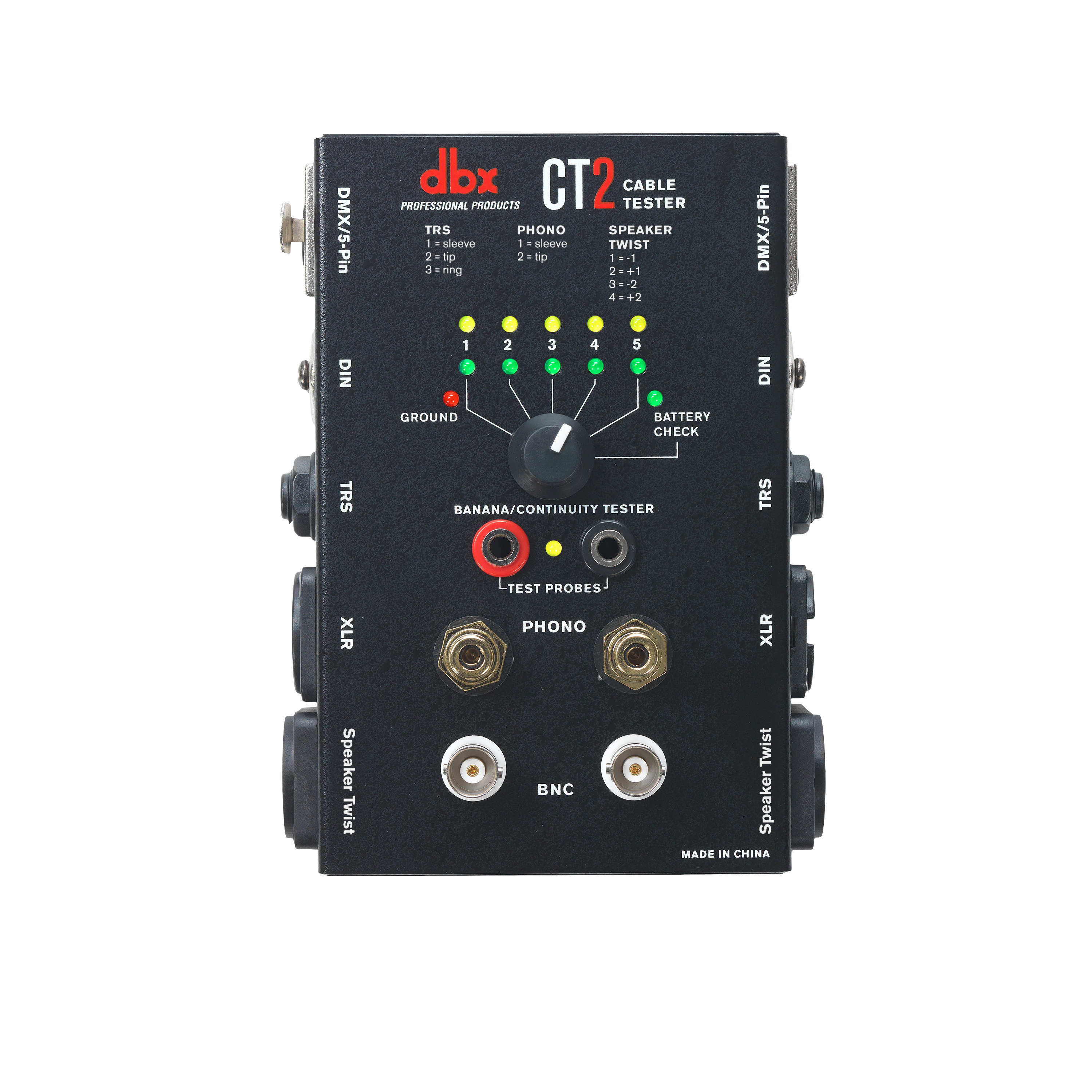

We all know how frustrating and time consuming it can be when your audio cables fail. With the dbx CT2 cable testing unit you can now evaluate a large variety of your cables with ease. The CT2 offers many common connectors such as Speaker Twist, XLR, Phono, BNC, DIN, TRS, TS, DMX, & Banana. The CT2 allows for testing cables even with different connectors at each end. For example, it is simple to test a TRS to XLR cable. With well illuminated LED indicators and a simple rotary dial, users can quickly establish whether a cable is wired and functioning correctly, or if it is dead and in need of repair.

Recommended for: Studio, Tour, Portable.

Features

  • 6-position rotary selector with individual LED’s for up to five pins plus internal battery life check
  • ‘Banana’ connector continuity tester with beeper and LED indicator
  • Super-rugged construction for durability and longer life
  • (2) Speaker Twist connectors for testing of 4 pin->to pin connections
  • (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
  • (2) RCA Phono connectors for testing of 2 pin->to pin connections
  • (2) BNC connectors for testing of 2 pin->to pin connections
  • (2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
  • (2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
  • (2) 1/4” TRS connectors for testing of 3 pin->to pin connections
  • (2) Banana connectors for testing of 1 pin->to pin connections

Downloads

  Version Language Size Uploaded
file type icon CT-2 Safety & Compliance Document-English
en updated: Mar 2024
  en  325 KB Mar 2024
file type icon CT-2 Owner's Manual-English
en updated: Mar 2024
  en  222 KB Mar 2024
file type icon CT-2 Quickstart Guide-English
en updated: Mar 2024
  en  403 KB Mar 2024
file type icon CT-2 Quick Reference Guide-English
en updated: Mar 2024
  en  373 KB Mar 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Power Requirements 9V battery (Battery not included)
Dimensions 3.5” (8.9cm) (W) x 5.5” (14cm) (L) x 1.5” (3.7cm) (H)
