ZC1

Wall-Mounted Zone Controller

$59.00
Buy It Now
Larger Images

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

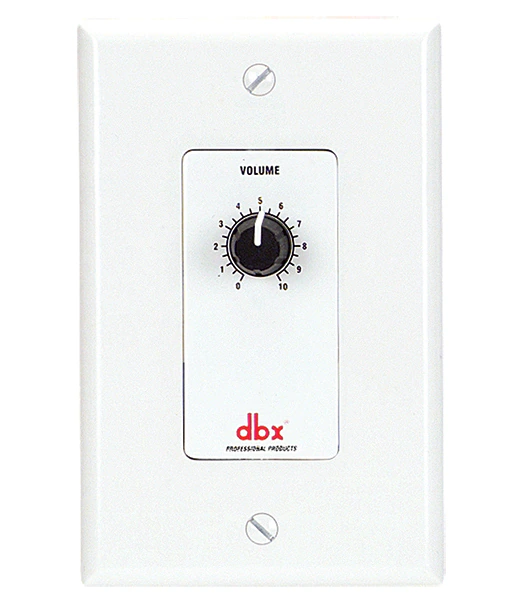

The ZC-1 provides programmable remote volume control for the DriveRack 220i, 260 and ZonePRO devices.

All information is subject to change without notice.



Recommended for: Installed.

More Details

Architects’ and Engineers’ Specifications:

The remote device shall provide computer programmable rotary potentiometer volume control for the dbx DriveRack 260, 220i and ZonePRO™ devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors. The device shall be a dbx ZC-1 remote controller.

Downloads

  Version Language Size Uploaded
ZC1 CAD drawing front
en updated: Nov 21, 2020
  en  40.6 KB Nov 21, 2020
ZC1 Cut Sheet-English
en updated: Nov 22, 2020
  en  832 KB Nov 22, 2020
ZC controller connectivity and association.pdf
en updated: Nov 22, 2020
  en  274 KB Nov 22, 2020
Tech Notes
ZC Connectivity and Association
updated: Oct 22, 2020
    274 KB Oct 22, 2020
Training Resources
ZonePRO Training (All)
updated: Oct 22, 2020
    367 MB Oct 22, 2020
Owner's Manuals
ZC Series Manual-English
updated: Oct 22, 2020
    1.39 MB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Connectors (2) RJ-45
Series Wiring Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065
