PB48

48-Point Patch Bay

PB48
Larger Images

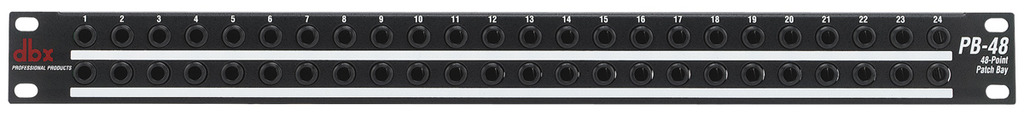

The PB-48 is a patchbay that just works, all the time, every time. It comes in two flavors: half-normalled or de-normalled, with 48 1/4" points on the front panel, connected to 48 1/4" points on the rear. The PB-48 is a rugged, noise-free, versatile patchbay designed to serve all your patchbay needs, from providing clear and easy access to your mixer and other studio gear, to reducing the wear and tear on their jacks, to facilitating quick and precise rerouting of devices within your studio setup.

Recommended for: Studio, Tour, Portable.

Downloads

  Version Language Size Uploaded
file type icon PB48 CAD drawing front
en updated: Sep 13, 2022
  en  40.3 KB Sep 13, 2022
file type icon PB48 CAD drawing rear
en updated: Sep 14, 2022
  en  44.7 KB Sep 14, 2022
file type icon PB48 Owner's Manual-English
en updated: Sep 14, 2022
  en  250 KB Sep 14, 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
