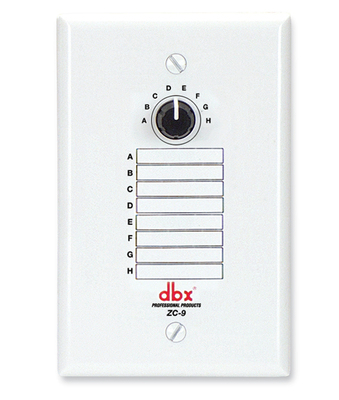

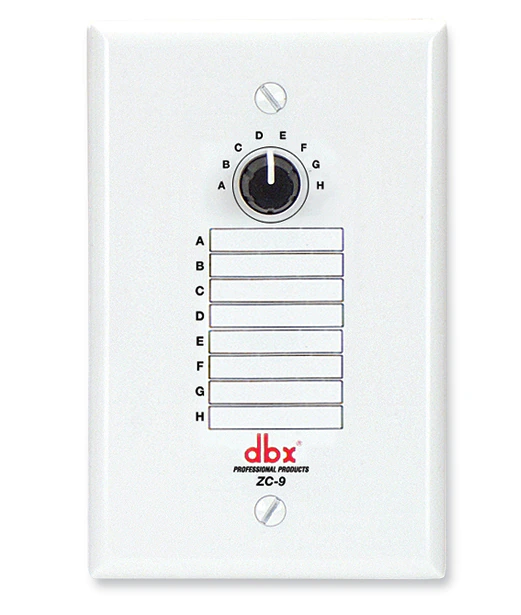

Wall-Mounted Zone Controller

Larger Images

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted rj-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

All information is subject to change without notice.

Recommended for: Installed.

More Details

Architects’ and Engineers’ Specifications:

The remote device shall provide rotary switch source selection for the ZonePro 1260 and 1261. The remote shall have DIP switch identification and connection to the device being controlled shall be via CAT 5 cable and RJ-45 connectors. The device shall be a ZC-9 remote control.


  Version Language Size Uploaded
file type icon ZC9 CAD drawing front
en updated: Jan 12
  en  137 KB Jan 12
file type icon ZC9 Cut Sheet-English
en updated: Jan 12
  en  832 KB Jan 12
file type icon ZC controller connectivity and association.pdf
en updated: Jan 12
  en  274 KB Jan 12
file type icon ZC-9_with_640-41.pdf
en updated: Jan 11
  en  123 KB Jan 11
Tech Notes
file type icon ZC Connectivity and Association
updated: Oct 22
    274 KB Oct 22
Training Resources
file type icon ZonePRO Training (All)
updated: Oct 22
    367 MB Oct 22
Owner's Manuals
file type icon ZC Series Manual-English
updated: Oct 22
    1.39 MB Oct 22

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Connectors (2) RJ-45
Series Wiring Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065

Training Modules



Wall-Mounted Zone Controller
