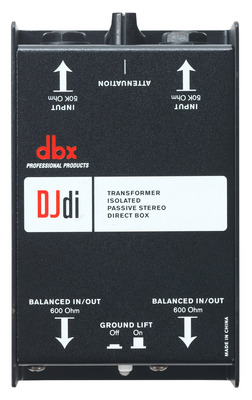

DJDI

2-channel Passive Direct Box

DJDI
Larger Images

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

Recommended for: Studio, Tour, Portable.

Features

  • Dual Channel
  • (2) 1/4” 50k Ohm TS Inputs
  • (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
  • Passive Circuit Design
  • Continuously Variable Input Attenuator
  • Ground Lift Switch

Downloads

  Version Language Size Uploaded
file type icon DJDI Safety & Compliance Document-English
en updated: Mar 2024
  en  325 KB Mar 2024
file type icon DJDI Owner's Manual-English
en updated: Mar 2024
  en  352 KB Mar 2024
file type icon DJDI Quickstart Guide-English
en updated: Mar 2024
  en  92.6 KB Mar 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Circuit Passive
Inputs 2
Input Connectors 1/4” TS (Tip Hot, Sleeve Ground)
Input Type Unbalanced, RF Filtered
Input Impedance 50 kOhm
Outputs 2
Output Connectors Male XLR, Balanced, Pin 2 hot
Output Impedance 600 Ohms
Noise Level -104dBu (22Hz -22kHz, Input Shorted)
THD+N (10Hz-22kHz) 0.23% typical @ +4dBu @ 1kHz
Insertion Loss 21dB typical
