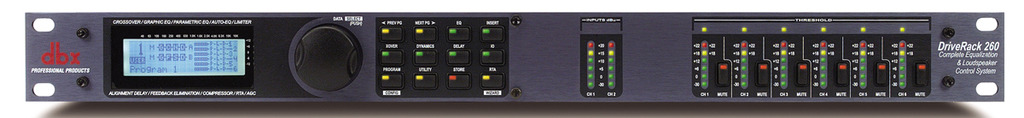

DriveRack 260

Loudspeaker Management System

MSRP $1,249.94
Save $649.99!
Buy It Now
Larger Images

There is a reason that Tour Sound Professionals and discriminating Audio Contractors choose dbx® DriveRack® products for their high-end tours and installs. The DriveRack products provide the tools that ensure that the system sounds its very best. With the introduction of the new 260, the heritage of unrivaled system/loudspeaker control continues. The 260 capitalizes on the road tested and contractor approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control and the patent-pending Advanced Feedback Suppression (AFS™).

The DriveRack 260 continues the legacy of DriveRack series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, PeakStopPlus® limiters (to provide protection against speaker blowouts) and alignment delay. These features combined with the Wizard setup system and complete DriveWare™ GUI control represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.

Recommended for: Installed, Portable, Tour.


  • Feedback Elimination
  • 2.7 Seconds of Alignment and Zone Delay
  • RS-232 PC GUI control
  • Classic dbx Compression and Limiting
  • Graphic and Parametric EQ
  • Auto-EQ Function
  • Full Bandpass, Crossover, and Routing Configurations
  • Auto Gain Control
  • Pink Noise Generator and fulltime RTA
  • Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
  • Security Lockout
  • Wall Panel Control Inputs


  Version Language Size Uploaded
DriveRack 260 Safety & Compliance Document-English   en  326 KB Sep 23, 2015
DriveRack 260 CAD drawing front   en  361 KB Aug 28, 2012
DriveRack 260 CAD drawing rear   en  168 KB Aug 28, 2012
DriveRack 260 Cut Sheet-English   en  1.39 MB Dec 20, 2011
Tuning List   en  114 KB Sep 24, 2015
DriveRack 260 Owner's Manual-French   fr  4.88 MB Aug 12, 2014
DriveRack 260 Owner's Manual-German   de  3.63 MB Aug 12, 2014
DriveRack 260 Owner's Manual-English   en  8.28 MB Sep 24, 2015
DriveRack 260 Owner's Manual-Spanish   es  3.9 MB Aug 11, 2014
DriveRack 260 Quickstart Guide-English   en  4.49 MB Nov 25, 2015
DriveWare 2.6.2    2.01 MB Aug 23, 2016
DriveRack 260 Updater 1.60    925 KB Aug 23, 2016
Speaker Tunings
260 JBL AE series Speaker Tunings     140 KB Aug 27, 2015
260 JBL Cinema series Speaker Tunings     20.7 KB Aug 27, 2015

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Input (2) line inputs. (1) RTA Mic input
Input Connectors (2) Female XLR line inputs. XLR RTA Mic input
Input Type Electronically balanced/RF filtered
Input Impedance >40k ohm
Max Input +30dBu with input jumpers in +30 position
CMRR > 45dB
Mic Preamp Phantom Power +15VDC (RTA)
Mic Preamp Equivalent Input Noise (EIN) < -110dB, 22Hz-22kHz, 150 ohm (RTA)
Output 6 total
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120ohm
Max Output +22dBu
A/D Converter dbx Type IV™ Conversion System
A/D Dynamic Range (line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range >119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
Sample Rate 48kHz
D/A Dynamic Range 112 dB A-weighted, 109dB unweighted
Dynamic Range >110 dB A-weighted, >107dB unweighted
THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response 20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk >110dB, 120dB typical, (input-to-output: >100dB)
